You don’t know passive RTLS unless you have tested a CS445.


IDENTIFY



Uniquely identify multiple passive RFID tags with an exceptionally long read range



Identify tags from up to 45 feet using a single CS445 smart antenna


LOCATE



Accurately ascertain the present location of all passive RFID tags in three dimensions (x y z)



Locate all tags with up to 6 inches of accuracy using a single CS445 smart antenna


TRACK



Track the movement of passive RFID tags concurrently in real time



Track 1,000’s of tags in multiple zones and set rules and alerts using a single CS445

About Us

Founded in St Louis, MO in 2014

Proven Track Records

Catalyst to Passive RTLS

Partner Programs

Our partners are an extension of our team providing access to software solutions, complementary products and services for IoT projects globally.

CS445 installed inside
Edina, MN location

Performance Using a Single CS445

Each CS445 provides the essential components for hands-free, continuous,
real time tracking of RAIN RFID (Passive UHF) tags.

Each CS445 provides the essential components for hands-free, continuous,
real time tracking of RAIN RFID (Passive UHF) tags.

1000+

TAG DENSITY
(tags)

Reading 1,000+ tags without the effects of multipath ambiguity

45

TAG READ DISTANCE
(feet)

90 degree cone reads each tag in a raster scan motion based on programmable zones inside coverage area

12-25

MOUNTING HEIGHT
(feet)

The optimal ceiling height is 25 feet to maximize coverage area per CS445

8

TAG READ PERIOD (milliseconds)

The maximum length of time required to read each RAIN RFID tag is 8 milliseconds

0.5

LOCATION ACCURACY
(feet)

Up to 6 inches location
accuracy in three-dimensions

1000+

TAG DENSITY
(tags)

Reading 1,000+ tags without the effects of multipath ambiguity

45

TAG READ DISTANCE
(feet)

90 degree cone reads each tag in a raster scan motion based on programmable zones inside coverage area

12-25

MOUNTING HEIGHT
(feet)

The optimal ceiling height is 25 feet to maximize coverage area per CS445

8

TAG READ PERIOD (milliseconds)

The maximum length of time required to read each RAIN RFID tag is 8 milliseconds

0.5

LOCATION ACCURACY
(feet)

Up to 6 inches location
accuracy in three-dimensions

1000+

TAG DENSITY
(tags)

Reading 1,000+ tags without the effects of multipath ambiguity

45

TAG READ DISTANCE
(feet)

90 degree cone reads each tag in a raster scan motion based on programmable zones inside coverage area

12-25

MOUNTING HEIGHT
(feet)

The optimal ceiling height is 25 feet to maximize coverage area per CS445

8

TAG READ PERIOD (milliseconds)

The maximum length of time required to read each RAIN RFID tag is 8 milliseconds

0.5

LOCATION ACCURACY
(feet)

Up to 6 inches location
accuracy in three-dimensions

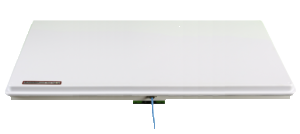

Plug & Play

MECHANICAL SPECS

Height     60 cm (23.75 in)
Width      60 cm (23.75 in)
Depth      10 cm (4 in)
Weight    6.8 kg (15 lbs)

EASY TO INTEGRATE API

The CS445 OS framework features an ISO compliant API that enables solution providers to consume and interact with real-time location data that allows any system or application to confidently and intelligently manage inventory and business events.

EASY TO INSTALL INFRASTRUCTURE

The CS445 only requires Power over Ethernet (POE) to operate its fixed reader + steerable phased array system.  Approved by FCC under Part 15 regulations, and compliant with ETSI EN 302 208

EASY TO SCALE UP

The CS445 is suitable for the warehouse and the dressing room! Location coverage improves with multiple  units allowing each CS445 to communicate with each other.

EASY TO WORK WITH ANY RAIN RFID SUPPLIERS

The CS445 is tag agnostic and works with all RAIN RFID (passive UHF) tags.

What Use Cases Are You Working On?

Electronic Article Surveillance Use Case
Multi-Zone Warehouse Dock Door
Pallet Build Aggregation
